Configuring Odido TV with home assistant

I recently set up my Odido TV box with Home Assistant to control it via a dashboard. Here’s how I did it using the Universal Remote Card, ADB, and some custom buttons. This guide assumes you have a bit of Home Assistant experience.

Prerequisites:

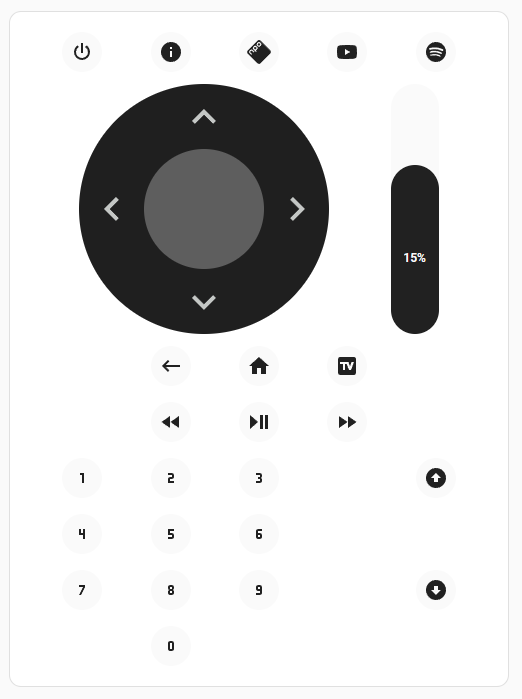

Let’s start with the full reference config I have now:

type: custom:universal-remote-card
rows:
  - - power
    - info
    - npostart
    - youtube
    - spotify
  - - circlepad
    - slider
  - - null
    - back
    - home
    - tv
    - null
  - - null
    - rewind
    - play_pause
    - fast_forward
    - null
  - - n1
    - n2
    - n3
    - null
    - zap_up
  - - n4
    - n5
    - n6
    - null
    - null
  - - n7
    - n8
    - n9
    - null
    - zap_down
  - - null
    - n0
    - null
    - null
    - null
platform: Android TV
custom_actions:
  - type: button
    name: zap_up
    icon: mdi:arrow-up-bold-circle
    tap_action:
      action: perform-action
      perform_action: androidtv.adb_command
      target:
        device_id: 6aea6b9b559fc91ceae361215b4f6854
      data:
        command: input keyevent 92
  - type: button
    name: zap_down
    icon: mdi:arrow-down-bold-circle
    tap_action:
      action: perform-action
      perform_action: androidtv.adb_command
      target:
        device_id: 6aea6b9b559fc91ceae361215b4f6854
      data:
        command: input keyevent 93
  - type: slider
    name: slider
    range:
      - 0
      - 0.25
    step: 0.01
    value_attribute: volume_level
    tap_action:
      action: perform-action
      perform_action: media_player.volume_set
      target:
        device_id: 46f1c32aa4e4d912286bb15f49aaa54a
      data:
        volume_level: "{{ value | float }}"
    vertical: true
    entity_id: media_player.bose_soundbar_700_3
    icon: mdi:volume-high
    label: "{{ (value * 100 ) | int }}%"
remote_id: remote.odidotv
media_player_id: media_player.android_tv_192_168_1_167
autofill_entity_id: true
styles: |2-

    #circlepad {
      width: 250px;
    }
    remote-button {
      background: var(--lovelace-background, var(--primary-background-color, #6f767d));;
      padding: 8px;
      margin: 4px;
      border-radius: 24px;
      --size: 24px;
    }

Points of interest here:

  • Non-functional buttons at this time:
    • TV – Doesn’t do anything
    • Info – Doesn’t do anything
  • Missing buttons from actual remote:
    • Radio – Don’t need this – don’t know how to get it to work either
    • TV Guide – TODO
    • REC button – I don’t pay for recording, so not using
    • Source button – Don’t need it (yet)
    • Apps button – TODO

The hardest part was getting the zap (channel up/down) buttons to work. To get this to work I needed to first get adb setup. Then it turns out there are no key commands for incrementing/decrementing the channel. After some experiments, the page up and page down keys control this, so mapped those with custom new buttons (zap_up and zap_down). The device ID can be found in the developer tools with view yaml after doing Actions -> ADB command -> Pick a target -> GO TO YAML MODE. There’s probably a quicker way to do this.

The volume controls are custom. I have a bose soundbar 700 and I want to control its volume instead. Since the default volume range is way too wide, I constrained it to 0-25%.

The circlepad styling is some attempt to make it a bit smaller.

Note that the numpad doesn’t come with 0 out of the box, so I configured it explicitly with 10 buttons.
